Architectural Flexible Stainless Steel Cable Mesh Building Material 1.5-3.2 Wire Dia

Name: Architectural Flexible Stainless Steel Cable Mesh Building Material 1532 Wire Dia
Brand: Yuntong
Price: 1 USD

Wholesale Architectural Flexible Stainless Steel Cable Mesh Building Material 1.5-3.2 Wire Dia from china suppliers

Brand Name : Yuntong

Model Number : YT-S-1617

Certification : CE , SGS

Place of Origin : Hebei, China

MOQ : 10 square meters

Payment Terms : T/T, Western Union,PayPal, L/C

Supply Ability : 300 Square meters per week

Delivery Time : About 8-10 Work Days

Packaging Details : Package water-proof cloth inside then wooden box outside

Product Name : Stainless Steel X-tend Decorative Fence Rope Mesh

Wire Diameter : 1.5mm-3.2mm

Mesh Eye Size : 30x30 to 100x100mm or bigger

Cable Mesh Type : Knotted, ferrule

Shippment : Express, air or sea

Sample : Allowed

Cable Mesh Construction : 7x7, 7x19

Contact Now

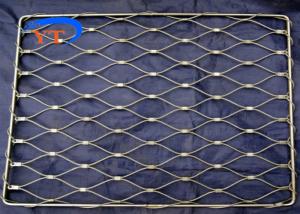

Building Material Architectural Stainless Steel Cable Mesh

Stainless Steel Cable Mesh is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane. As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. No matter how large, how small, or how cunning you specimens are, we assure their complete security.

Stainless Steel Cable Mesh Description:

Cable Mesh Constructure	Cable Mesh Diameter (inch)	Mesh Aperture (mm)	Min.Breaking Load(KN)
7x19	1/8''	120x208	7.38
7x19	1/8''	100x173	7.38
7x19	1/8''	90x156	7.38
7x7	3/32''	100x173	4.18
7x7	3/32''	90x156	4.18
7x7	3/32''	80x139	4.18
7x7	3/32''	70x121	4.18
7x7	5/64''	100x173	3.17
7x7	5/64''	90x156	3.17
7x7	5/64''	80x139	3.17
7x7	5/64''	70x121	3.17
7x7	1/16''	80x139	2.17
7x7	1/16''	70x121	2.17
7x7	1/16''	60x104	2.17
7x7	1/16''	50x87	2.17
7x7	3/64''	80x139	1.22
7x7	3/64''	70x121	1.22
7x7	3/64''	60x104	1.22
7x7	3/64''	50x87	1.22

Stainless Steel Cable Mesh Charecteristic :

1. Soft to the touch, can't hurt hands.
2. Light weight, but strong.

3. Excellent flexibility for tough installations.
4. Life span more than 30 years.
5. Environmental degradation resistant, say, corrosion, ultraviolet.

Stainless Steel Cable Mesh Type:

1). knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

2). ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the

combination style, the stainless wire rope are combined by the ferrules which are made of the same

grade stainless steel.
